Hush-Panel 23 - 600mm x 2400mm x 23mm

Delivery 1-2 Working Days

Hush Panel 23 has been designed as a thin overlay solution to reduce impact sound through concrete and other masonry structures. Masonry constructions achieve good levels of airborne sound reduction due to their mass but will fail the impact performance criteria set out in the Building Regulations without a suitable acoustic floor deck. The Hush Panel 23 has been designed with this in mind.

It is a thin and economical solution for achieving the impact regulations over masonry structures.

• Economical acoustic floating floorboard
• To be used in new build developments with concrete floors
• Building Regulations compliant for Document E (England & Wales), Section 5 (Scotland) and Part G (Northern Ireland)
• Can be used as part of a Code For Sustainable Homes specification
• Compliant with Robust Details criteria
• Can be used with all floor finishes as long as the correct practices are followed
• A peel clean version can be available on request

Impact  dB	Airborne  dB	dB
45	62	55

Application	An acoustic floor deck to be used as an overlay solution to concrete structures.
Area Per Board	1.44 M2
Weight Per M2	14.5 kg per m2
Weight Per Board	20.88kg

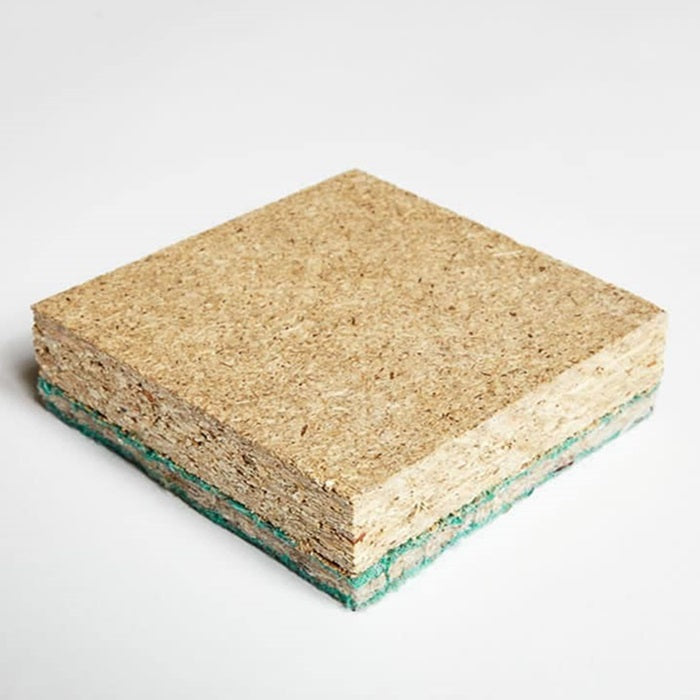

Comprises	Comprises of 18mm P5 moisture resistant T&G chipboard and a 5mm Hushfelt resilient layer
Board Dimensions	2400mm x 600mm x 23mm
FFL over concrete	21mm
Overall nominal thickness	23mm
