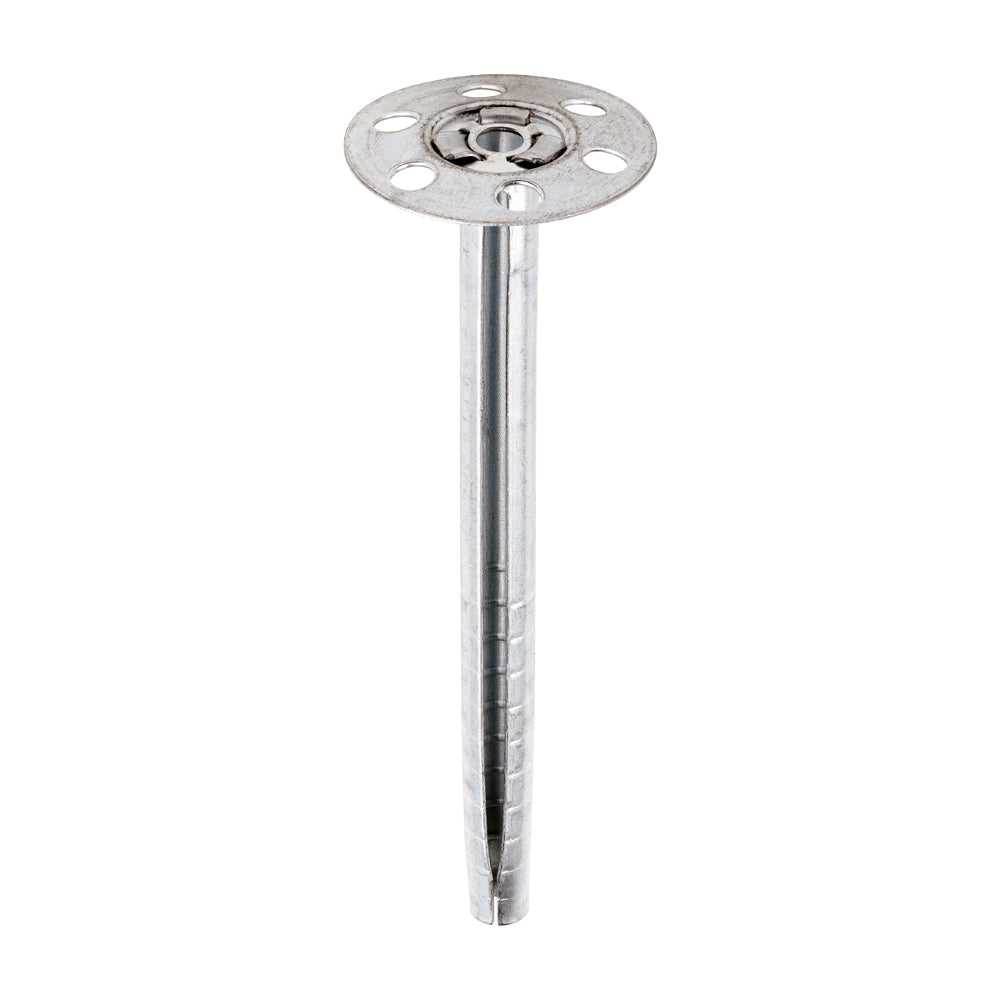

Metal Insulation Fixings 170mm x 8.00mm - Galvanised - (Bag of 50)

Designed to anchor insulation material to concrete and masonry substrate materials.

Suitable for upto 102.5mm Insulated plasterboard

TO REDUCE RISK OF THERMAL TRANSMISSION USE TIMCO PLASTIC COVER CAPS

• All metal through fixing
• Large diameter head
• Minimum embedment depth marker• All metal through fixing
• Large diameter head
• Minimum embedment depth marker

Technical Data
Substrate - Concrete ≥ 25N/mm2
Type - Metal
Drill Hole Ø (mm) - 8.0
Min. Embedment Depth (mm) - 50
Min. Drill Hole Depth (mm) - 60
Rec. Tensile Load (kN) - 0.20
Max Rec. Load (kg) - 20

TO REDUCE RISK OF THERMAL TRANSMISSION USE TIMCO PLASTIC COVER CAPS
