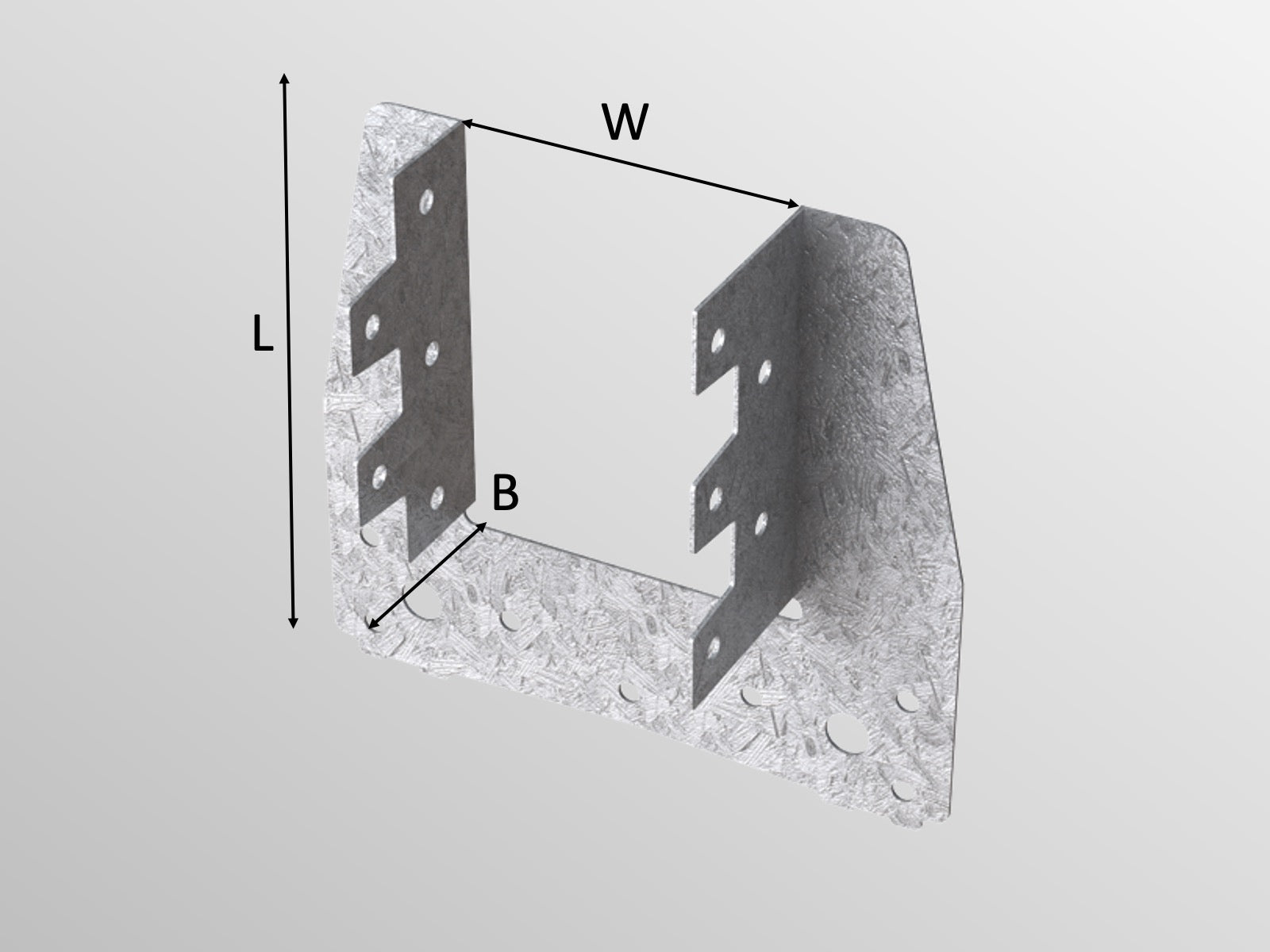

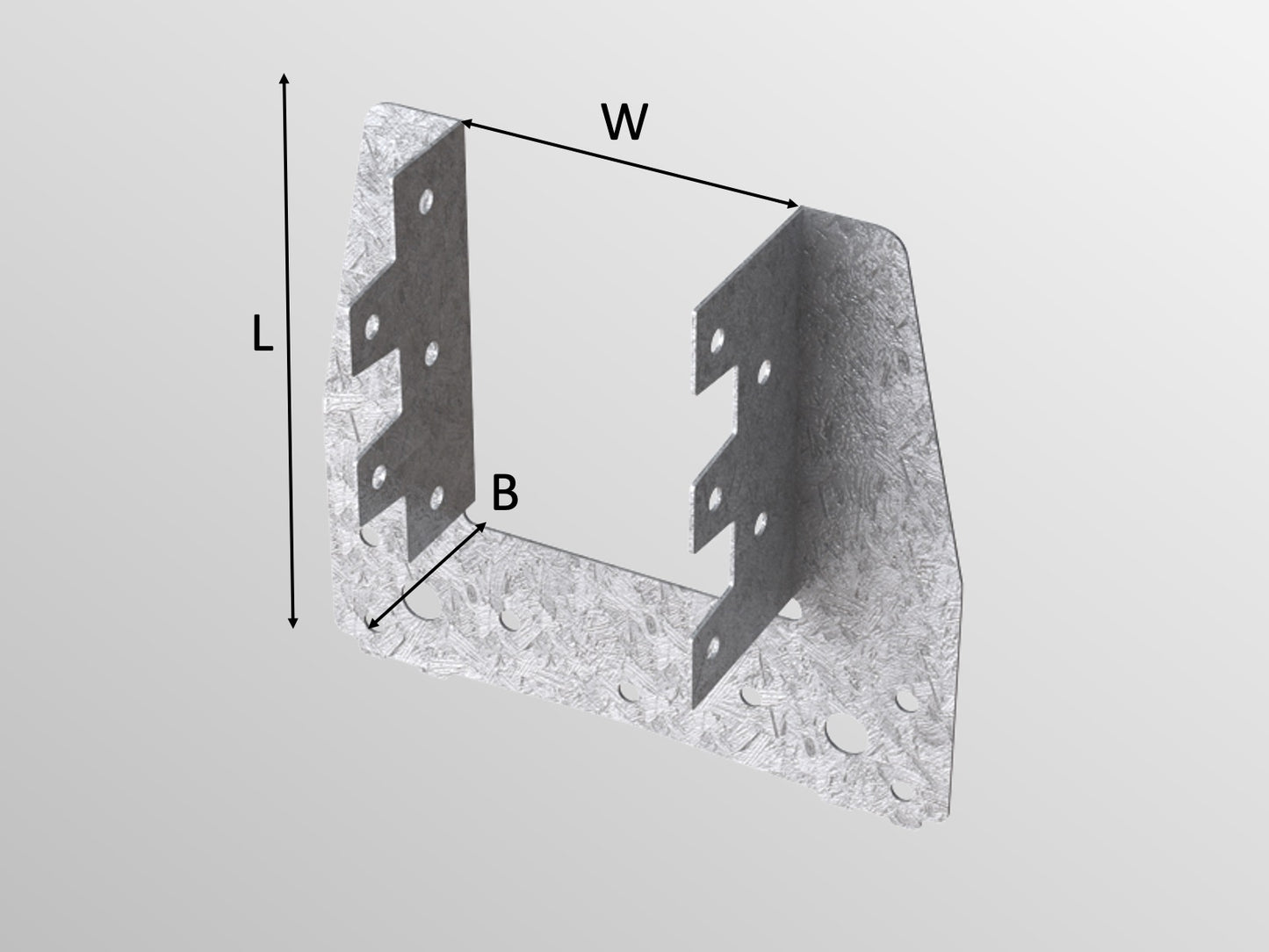

Truss Clips - Galvanised

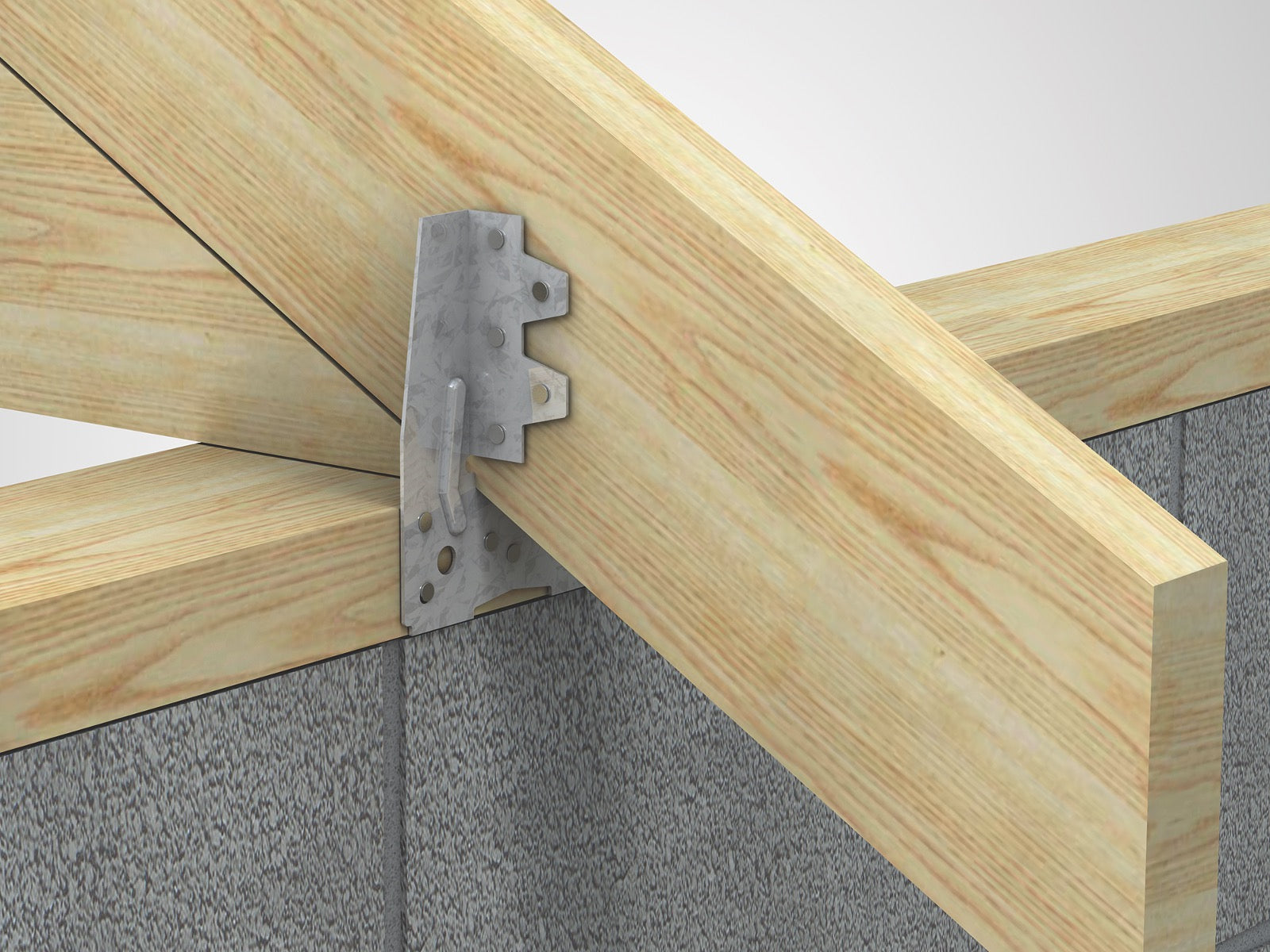

Attaches trusses and rafters to wall plates to provide wind restraint. Avoids skew nailing damage and provides positive resistance to wind forces. Safe working load 2.38kN uplift.

Truss Clips provide an inexpensive and effective method of fixing trussed rafters to wallplates as recommended in BS 5268 : Part 3.  Can also be used for general applications as a multi-purpose connector to provide restraint whenever two timber members cross.

• Material - Produced from 0.9mm thick galvanised steel to BS EN 10346:2009 +G275 as standard or stainless steel to order.
• Fixing - Fix using either Type A or Type B fixings in all pre-punched holes:
  • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
  • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
